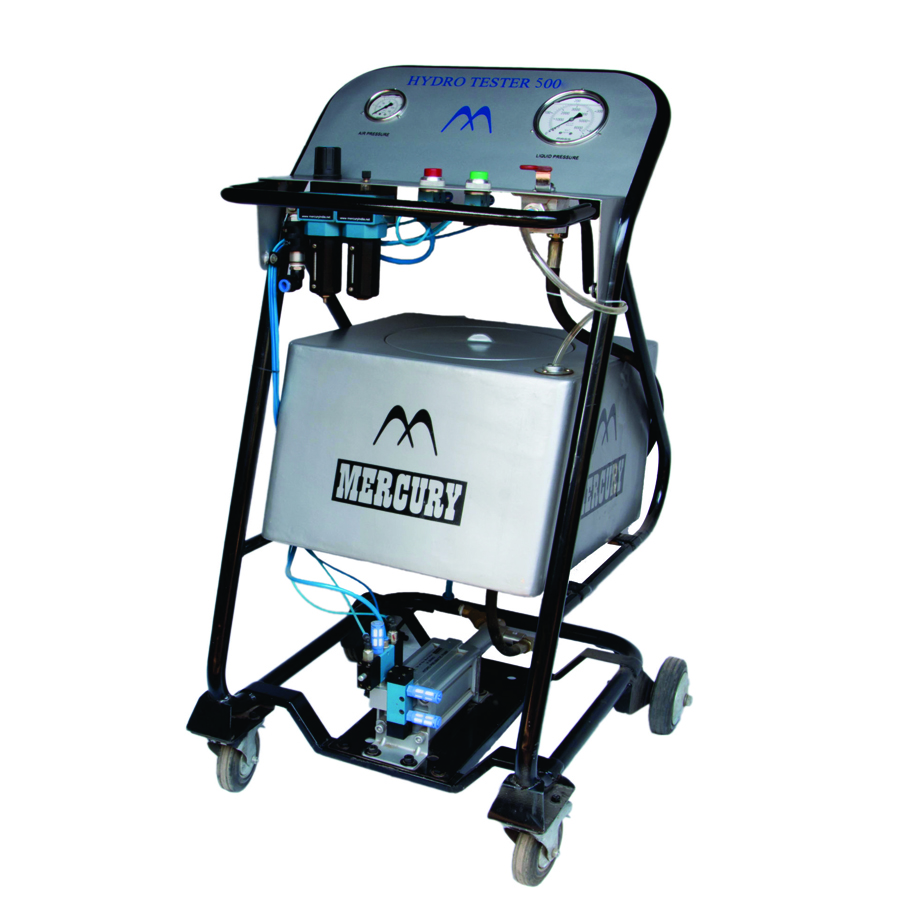

Hydrotester 500
Hydrotester 500

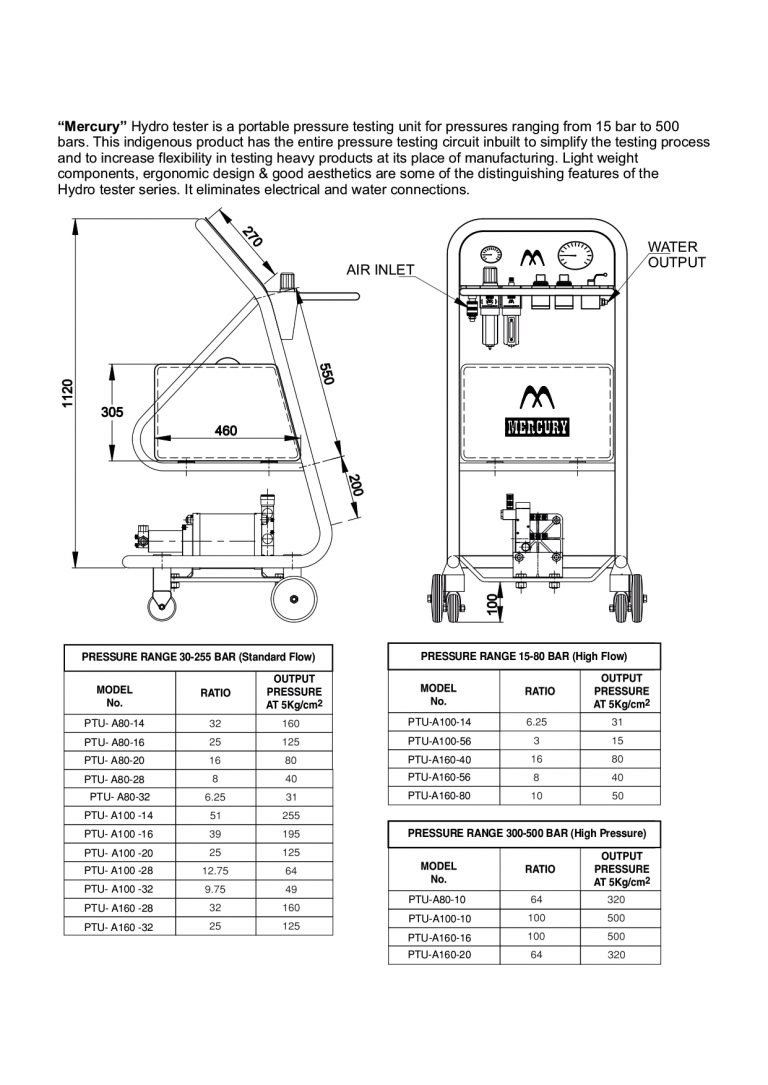

Mercury’s Hydro Tester is a portable pressure testing unit for pressures ranging from 15 bar to 500 bar.
this Indigenous product has the entire pressure testing circuit inbuilt to simplify the testing process and to increase flexibility in testing heavy products at its place of manufacturing .
Light weight components, ergonomic design and good aesthetics are some of its distinguishing features . in addition , it completely eliminates electrical and water connections .
PRESSURE RANGE 30–255 BAR (Standard Flow)
| MODEL No. | RATIO | OUTPUT PRESSURE AT 5kg/cm² |
|---|---|---|
| PTU-A80-14 | 32 | 160 |
| PTU-A80-16 | 25 | 125 |
| PTU-A80-20 | 16 | 80 |
| PTU-A80-28 | 8 | 40 |
| PTU-A80-32 | 6.25 | 31 |
| PTU-A100-14 | 51 | 255 |
| PTU-A100-16 | 39 | 195 |
| PTU-A100-20 | 25 | 125 |
| PTU-A100-28 | 12.75 | 64 |
| PTU-A100-32 | 9.75 | 49 |
| PTU-A160-28 | 12.75 | 64 |
| PTU-A160-32 | 25 | 125 |
PRESSURE RANGE 15–80 BAR (High Flow)
| MODEL No. | RATIO | OUTPUT PRESSURE AT 5kg/cm² |
|---|---|---|
| PTU-A100-14 | 6.25 | 31 |
| PTU-A100-56 | 6 | 30 |
| PTU-A160-40 | 3 | 15 |
| PTU-A160-80 | 2 | 10 |
PRESSURE RANGE 300–500 BAR (High Pressure)
| MODEL No. | RATIO | OUTPUT PRESSURE AT 5kg/cm² |
|---|---|---|
| PTU-A80-10 | 64 | 320 |
| PTU-A100-10 | 100 | 500 |
| PTU-A160-16 | 100 | 500 |
| PTU-A160-20 | 64 | 320 |
